Bosch Gen 4 Upgrade Service

Bosch Gen 4 Upgrade Service

$330.93

3 in stock

SKU: BOSCHG4UPGRADE Category:

At eBike Motor Repair we noticed a failure pattern on the Bosch Generation 4 motors when used on EMTB’s. We could also see from our own experience, and the sheer number of Bosch Gen 4 motors going through our workshop, there were a few issues that needed addressing, particularly when used off-road. Although Bosch have been working hard to address some of these issues, that does not really help those outside of the warranty period. So, like our Brose upgrade, we decided to do something about it!

Don’t be this guy!

We now offer an upgrade for all Bosch Gen 4 motors. This includes the following:

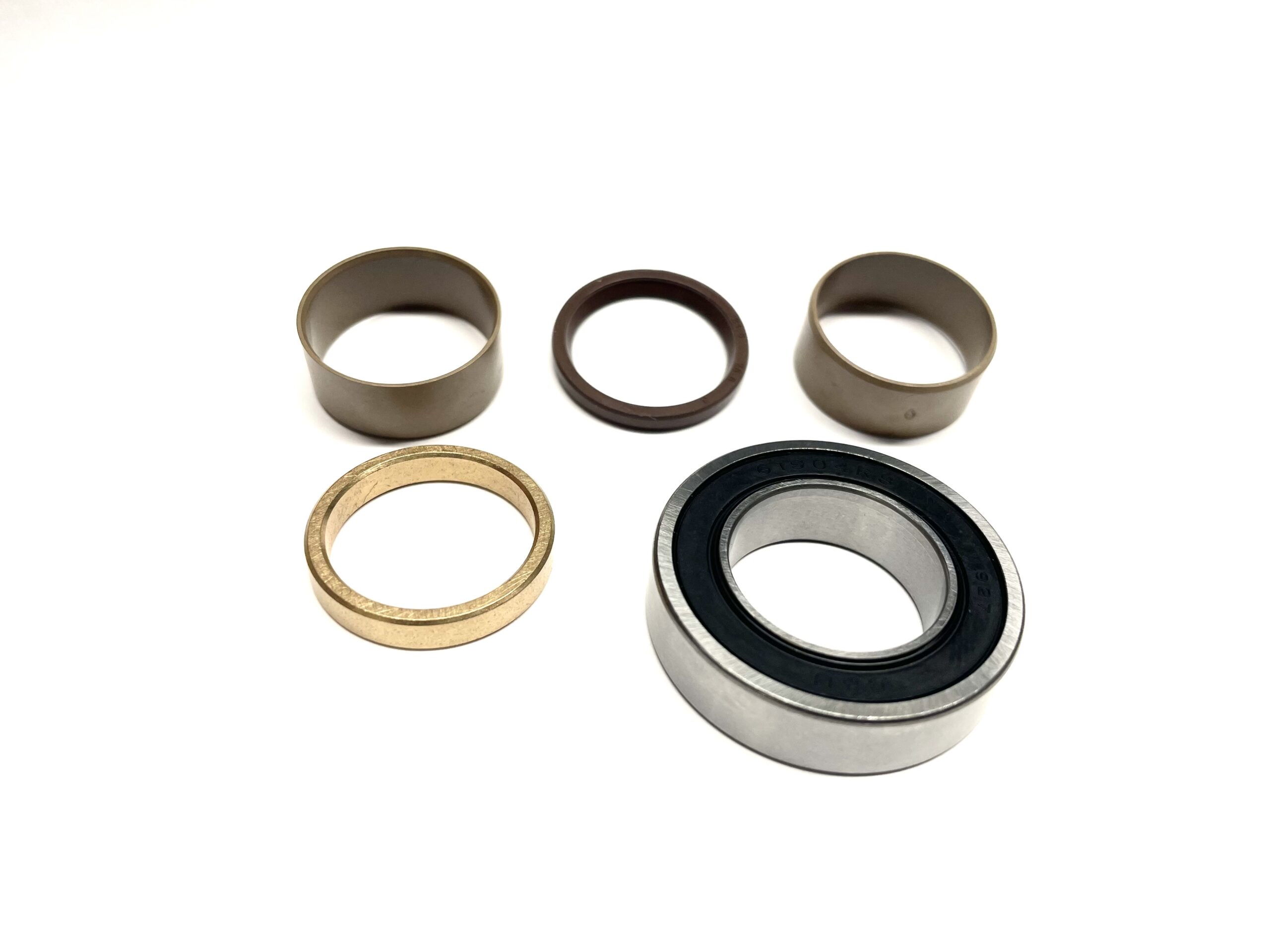

  • Motor is disassembled and the complete crankshaft assembly removed.
  • Self-lubricating plastic crankshaft support bushes are replaced in the torque tube to stabilise crankshaft play.
  • The original torque tube sealing ring is removed and an Oilite self-lubricating bronze bush is fitted to ensure maximum crankshaft support. This stops crankshaft oscillation and aids sealing.
  • After the Oilite bush, we fit a single-lip rotary shaft seal, with the lip facing outwards to stop water ingress into the crankshaft and torque tube area. This stops rust damage to the crankshaft bearing surface, premature failure of the crankshaft support bushes, and internal damage to the printed circuit board (PCB) and all other components.
  • The left hand crankshaft bearing is replaced with a double-sealed bearing to prevent water ingress into or through this bearing.
  • Waterproof long life grease is packed between outer bearings and motor covers. This helps stop water sitting in these areas and seeping into the outer bearings.
  • We also remove the PCB and add a silicone coating to the plug assembly gasket seal.
  • Silicone gasket sealant is also added to the aluminium motor cover gasket. Water ingress into this area corrodes the gasket faces of the magnesium motor cases.
  • Finally, we treat and coat the motors’ electric socket pins to limit corrosion.

Price for Bosch Gen 4 Motor Upgrade

The price is based on a motor being received in good working order, with no other parts or repairs required. Should we open your motor and find any issues that require attention, such as a worn or failing bearing, etc., we will contact you with a price to repair these issues before we continue with any upgrade work.

  • Bosch Gen 4 All models $330.93

If you want peace of mind when miles from home, or you want your Bosch motor as strong, watertight and reliable as is currently possible, just send your motor to us. Here’s how. This upgrade is also a must for anyone using their Bosch powered eBike for race or competition use.
